【FKM】DN80氟橡膠軟連接“化工廠管道好幫手”
DN65 single ball fluorine rubber soft connection "good assistant of chemical plant piping"
上海淞江減震器集團有限公司官方網站為您介紹：【FKM】DN80氟橡膠軟連接“化工廠管道好幫手”信息，淞江集團為化工廠酸管道生產一款耐強酸型橡膠軟連接產品，采用氟橡膠生產，具有良好的耐酸性能，也有耐高溫120的性能，以下是DN80單球氟橡膠軟連接實物拍照和介紹。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN80 single ball fluororubber soft connection "good helper in chemical plant pipeline" information, Meijiang Group for the chemical plant acid-base pipeline production of an acid-resistant rubber joint products, using fluororubber production, with good acid and alkali resistance, but also high temperature 120 The performance of the following is DN80 single ball fluorine rubber soft connection physical photo.

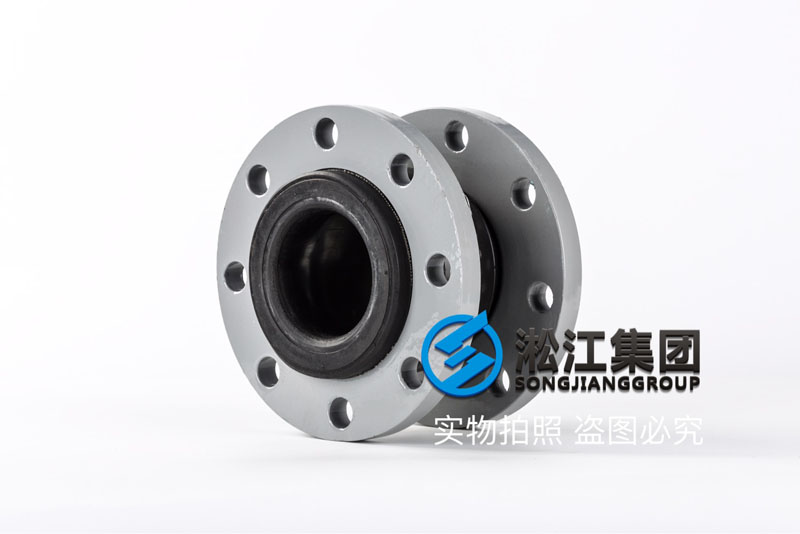

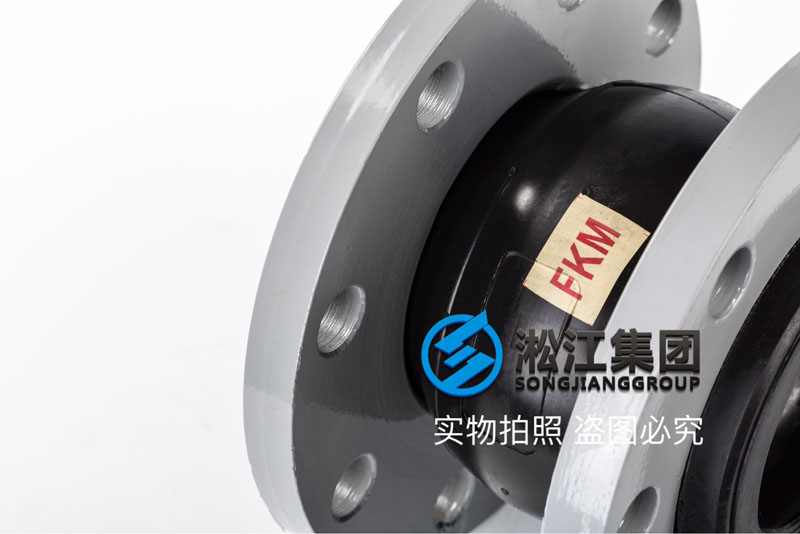

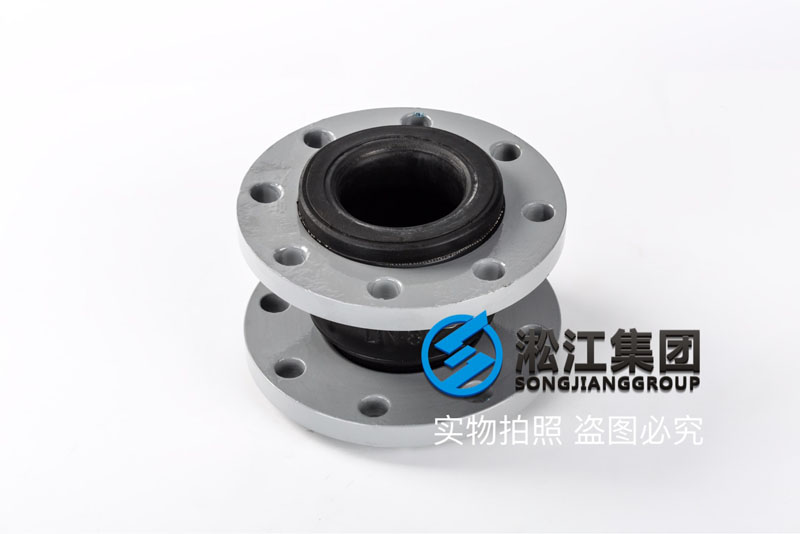

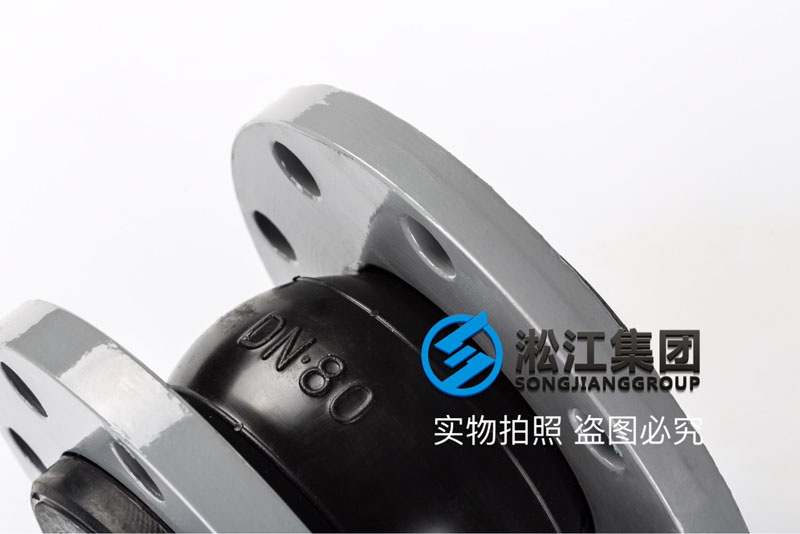

一、DN80化工廠氟橡膠軟連接實物拍照：
二、DN80化工廠氟橡膠軟連接參數介紹：
名稱：單球氟橡膠軟連接
型號：DN80
安裝長度：135mm
軸向壓縮：12mm
軸向拉伸：6mm
橫向位移：10mm
偏轉角度：15°
標準：GB/T 9119-2000
壓力：PN16
法蘭：碳鋼 / 球墨
介質：強酸、油類、高溫120度以下
質保：1年
橡膠材質：氟橡膠（FKM）
使用優點：減震、降噪、保護管道設備的長期使用，降低維修成本。
生產廠家：上海淞江減震器集團有限公司
資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告等。
淞江集團橡膠接頭生產流程：原材料檢測-小料自動配料-大料自動配料-自動混煉-自動成筒-自動成型-自動硫化-質量檢測-實驗室檢測-交付客戶
Name: single ball fluorine rubber soft connection
Model: DN80
Installation length: 135mm
Axial compression: 12mm
Axial tension: 6mm
Lateral displacement: 10mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16
Flange: carbon steel / spheroidal graphite
Medium: acid base, high temperature below 120 degrees.
Warranty: 1 years
Rubber material: fluorine rubber (FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.
Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers
三、DN80化工廠氟橡膠軟連接公司介紹：
The following is the introduction of Songjiang group
除了氟橡膠可以耐強酸之外，還有一款內襯四氟橡膠接頭也可以耐強酸堿，內襯四氟耐強酸堿的性能比氟橡膠還要好，價格和氟橡膠價格都差不多，如需了解請點擊：PTFE內襯聚四氟乙烯橡膠接頭
